Application
Compatible for Volkswagen Compatible for Audi 1.4 TSI/TFSI EA211 Engine
compatible for Audi A3 8p1 8P7 8pa 1.4 TFSI
compatible for Audi A4 8W2, B9; 8W5, B9 1.4 TFSI
compatible for Skoda Octavia 1Z5 1.4 TSI
compatible for Skoda Octavia II 1Z3 1.4 TSI
compatible for Skoda Rapid NH3 1.4 TSI
compatible for Skoda Superb 3T4, 3T5, 3V3, 3V5 1.4 TSI
compatible for Volkswagen Golf mk5, mk6, mk7 1.4 TSI
compatible for Volkswagen Jetta mk4, mk3 1.4 TSI
compatible for Volkswagen Passat 3G5, 3G2, 3C5, 3C2, 365, 362 1.4 TSI
Specification

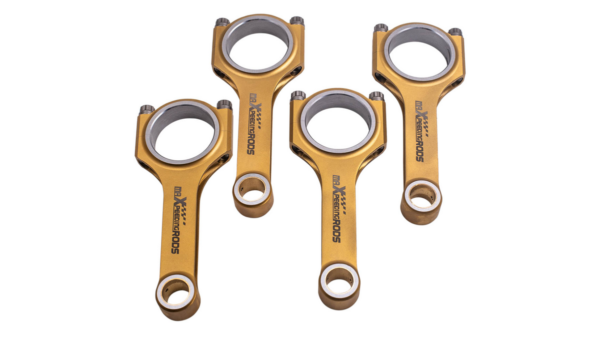

Performance Con Rods
Power: 600hp ~ 800hp per set
Quantity: 4 Pieces a set as showing in picture
Bolts: Including Genuine ARP 2000 5/16″ bolts (Note Extra cost for upgrading to ARP L19 bolts)
Material: Titanizing 4340 EN24 aircraft chrome moly quality steel for racing
Weight Tolerance: Balanced to +/- 1 gram in set
Warranty: one year warranty.
Color: Golden Color
Dimensions
Center to center length: 140mm
Big end diameter: 50.6mm
Small end diameter: 19mm
Big end width: XX
Small end width: XX
Feature
– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin
Note
– Please Carefully check the Size of the Rods in Specific and Description
– Professional installation is highly recommended (No Instruction Included)
– Custom Service: If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
– Learn more about CUSTOM SERVICE
