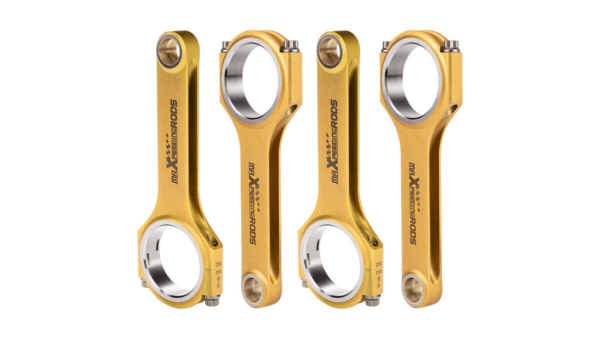

Forged conncting rods Mercedes-Benz W176 W246 C117 X156 1.6T Maxpeedingrods Titanium

Application

Compatible for Mercedes Benz M270 DE16 1.6T engine
Fitment Details:
Engine: M270 DE16 LA R
75 kW:
2015–2018 compatible for Mercedes-Benz W176 A160
2015–on compatible for Mercedes-Benz W246 B160
90 kW:
2011–on compatible for Mercedes-Benz W246 B180
2012–2018 compatible for Mercedes-Benz W176 A180
2013–on compatible for Mercedes-Benz C117 CLA180
2015–on compatible for Mercedes-Benz X156 GLA180
Engine: M270 DE16 LA
2011–present compatible for Mercedes-Benz W246 B200
2012–2018 compatible for Mercedes-Benz W176 A200
2013–present compatible for Mercedes-Benz C117 CLA200
2014–present compatible for Mercedes-Benz X156 GLA200

Specification

Performance Con Rods
Power: 800+hp per set
Quantity: 4 Pieces a set as showing in picture
Bolts: Including Genuine ARP 2000 3/8″ bolts (Note Extra cost for upgrading to ARP L19 bolts)
Material: Titanizing 4340 EN24 aircraft chrome moly quality steel for racing
Weight Tolerance: Balanced to +/- 1 gram in set
Warranty: one year warranty.

Dimensions

Center to center length: 152.2mm
Big end diameter: 45mm
Small end diameter: 20mm
Big end width: 20mm
Small end width: 20mm

Feature

– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE
