Forged conncting rods Triumph TR250 TR6 for GT6 Spitfire 1300 1500 Maxpeedingrods

Application

Compatible for Triumph TR5 TR250 GT6 TR6 late model Conrods
Note: Re-bore engine is need for fit TR250/TR5
Compatible for Triumph TR 5 250 1967 – 1968 Convertible 2.5 PI
Compatible for Triumph TR 6 – 1969 – 1976 Convertible 2.5, 2.5 PI

Specification

– Performance Con Rods
– Type: Forged 4340 aircraft chrome moly quality steel for racing

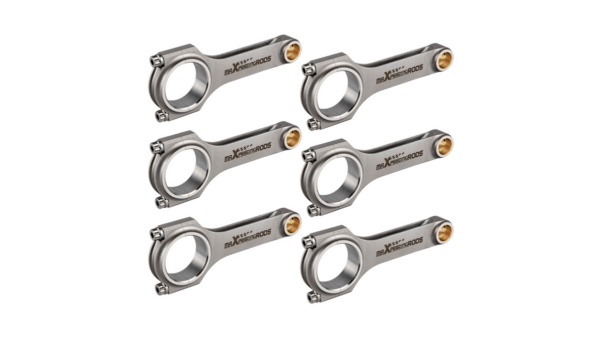

– H-beam Conrods Quantity: 6 Pieces as showing in picture
– Bolts: Including ARP 2000 bolts
– Note: Extra cost for upgrading to ARP L19 bolts
– Bolts Size: ARP 2000 5/16″ bolts
– Tolerance: Balanced to +/- 1 gram in set
– Piston Bolt Hole: +-4/1000mm
– Power: 600hp ~ 800PS per set
– Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
– Top acceleration: 7000rpm
– Warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 146.05mm
Big end diameter: 51.34mm
Small end diameter: 20.63mm
Big end width: xx
Small end width: xx

Feature

– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin

Note

– Please Carefully check the Size of the Rods in Specific and Description
– Professional installation is highly recommended (No Instruction Included)
– Custom Service:If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
