Application

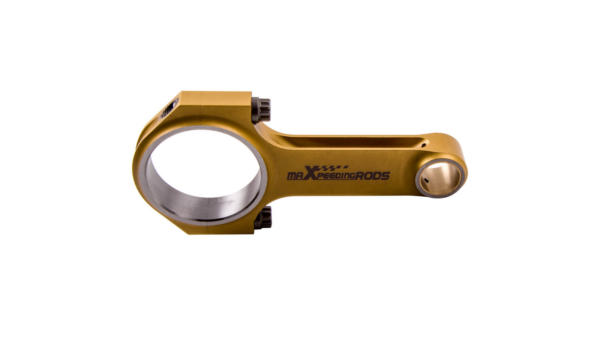

Compatible for Porsche 911 Carrera 3 3.0L H6
Feature
– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin
Dimensions
Center to center length: 127.75mm
Big end diameter: 56mm
Small end diameter: 22mm
Big end width: xx
Small end width: xx
Specification
Performance Con Rods
Type: Forged 4340 EN24 Titanizing H-Beam Connecting Rod
H-beam Conrods Quantity: 1 Pieces as showing in picture
Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8″ bolts
Tolerance: Balanced to +/- 0.5 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty: one year warranty for any manufacturing defect
Note
Professional installation is highly recommended (No Instruction Included)
Custom Service: If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE
