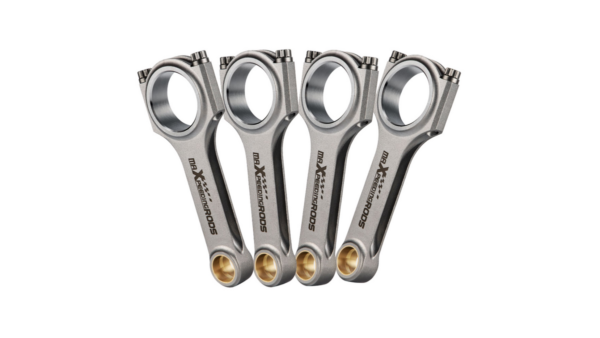

Forged conncting rods Peugeot 106 GTI S16 Citroen Saxo TU5J4 Maxpeedingrods

Application

Compatible for Peugeot 106 GTi / S16 1.6L TU5J4

Note

– Professional installation is highly recommended (No Instruction Included)
– Custom Service:If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts:Including Genuine 3/8″ ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 3/8″
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 133.5mm
Big end diameter:48.66mm
Small end diameter: 19.46mm
Big end width: 24mm
Small end width: 19.5mm

Feature

– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size andeliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin
