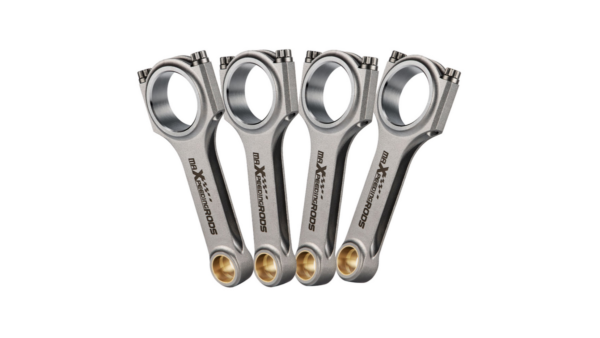

Forged conncting rods Mitsubishi Delica Lancer 4B12 2.4L engine Maxpeedingrods

Application

Compatible for Mitsubishi 4B12 2.4L engine , Inline 4-cylinder DOHC 16v, MIVEC
Compatible for Mitsubishi Delica 2007 – present 4B12 2.4L
Compatible for Mitsubishi Lancer 2007 – 2017
Compatible for Citroën C-Crosser 2.4 L 4B12 DOHC 16 valve MIVEC I4 2007 – 2012
Compatible for Peugeot 4007 2.4 L 4B12 Petrol DOHC 16 valve MIVEC I4 2007 – 2012
Compatible for Mitsubishi Lancer Sportback GTS 2007 – 2017
Compatible for Mitsubishi Lancer GTS 2009
Compatible for Mitsubishi Outlander (Facelift Europe) 2006 – 2012
Compatible for Mitsubishi Galant 2010
Compatible for Mitsubishi Lancer SE AWC 2012
Compatible for Mitsubishi Lancer GT Manual 2013
Compatible for Mitsubishi Lancer 2015

Specification

Quantity: 4 Pieces a set
Bolts: Including Genuine 3/8″ ARP 2000 bolts (Note: Extra cost for upgrading to ARP L19 bolts)
Material: Forged 4340 aircraft chrome moly quality steel for racing
Weight Tolerance: Balanced to +/- 1 gram in set

Dimensions

Center to center length: 143.7mm
Big end diameter: 51mm
Small end diameter: 21mm
Big end width: xx
Small end width: xx

Feature

– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin

Note

– Professional installation is highly recommended (No Instruction Included)
– Custom Service:If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
