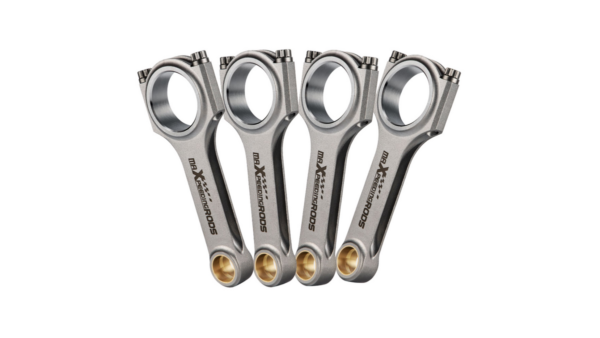

Name: Forged conncting rods Ford YB Sierra Escort 2.0 16V Cosworth RS500 Maxpeedingrods
Brand: MAXPEEDINGRODS
SKU: MPR-972
Availability: InStock

1. High Performance Material

Forged 4340 EN24 aircraft chrome moly quality steel for racing

2.High Quality Components

With Standard ARP 2000 Bolts （Upgradable ARP L19)

3.Professional H-Beam Design

Improve stiffness, reduce stress risers and reduce weight

4.Precision Machining Manufacturing

Shot Peening for improved fatigue life. 100% CNC machined for superior tolerances,Precision rod cap alignment dowels

application

Compatible for Ford YB Sierra Escort 2.0 RS 16V Cosworth RS500

Specification

– Piston Bolt Hole: +-4/1000mm
– Power: 600~800HP
– Strength of the fastening (PSI):200,000 – 230,000 psi
– Torque: 48ft ≈ 65 NM
– Top speed: 9000rpm
– Material: Forged 4340 aircraft chrome moly quality steel for racing
– Quantity: 4 Pieces a set as showing in picture
– Bolts: Including Genuine ARP 2000 3/8″ bolts (Note: Extra cost for upgrading to ARP L19 bolts)
– Weight Tolerance: Balanced to +/- 1 gram in set
– Warranty: one year warranty for any manufacturing defect.

Dimensions

Center to center length: 128.55mm
Big end diameter: 55.00mm
Small end diameter: 24.00mm
Big end width: 25.90mm
Small end width: 25.90mm

Note

* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
