Forged conncting rods Ford X Flow Lotus Twincam BDA Cosworth BDG Narrow Maxpeedingrods

Application

Compatible for Ford X Flow compatible for Lotus twincam BDA Cosworth BDG narrow journal

Specification

– Performance Con Rods
– Type: Forged 4340 aircraft chrome moly quality steel

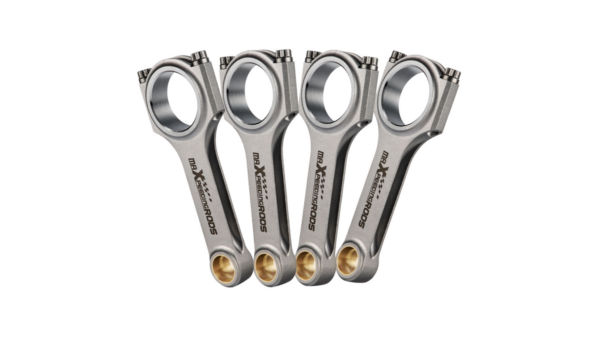

– H-beam Conrods Quantity: 4 Pieces as showing in picture
– Bolts: Including ARP 2000 bolts
– Note: Extra cost for upgrading to ARP L19 bolts
– Bolts Size: ARP 2000 3/8″ bolts
– Tolerance: Balanced to +/- 1 gram in set
– Piston Bolt Hole: +-4/1000mm
– Power: 600hp ~ 800PS per set
– Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
– Top acceleration: 9000rpm
– Warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 132.84mm
Big end diameter: 52.91mm
Small end diameter: 20.62mm
Big end width: 23.67mm
Small end width: 24.13mm

Feature

– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin

Note

– Professional installation is highly recommended (No Instruction Included)
– Custom Service:If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
