Application
Compatible for Chevrolet Malibu / Compatible for Buick Envision compatible for SGE 1.5 T LFV
Fitment Details:
Compatible for Chevrolet Malibu 2016-ON 1490cc 122 kW 163 hp
compatible for Buick Envision 2016-ON 1490cc 126 kW 169 hp
Specification
Performance Con Rods
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 220.000/230.000 PSI

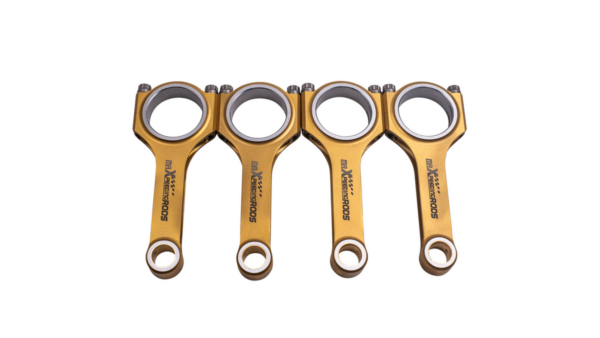

Quantity: 4 Pieces a set as showing in picture
Bolts: Including Genuine ARP 2000 3/8″ bolts (Note Extra cost for upgrading to ARP L19 bolts)
Material: Titanizing 4340 EN24 aircraft chrome moly quality steel for racing
Weight Tolerance: Balanced to +/- 1 gram in set
Warranty: one year warranty.
Color: Golden Color
Dimensions
Center to center length: 127.4mm
Big end diameter: 47.2mm
Small end diameter: 18mm
Big end width: XX
Small end width: XX
Feature
– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin
Note
Professional installation is highly recommended (No Instruction Included)
Custom Service: If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE
