1. High Performance Material
Forged 4340 EN24 aircraft chrome moly quality steel for racing
.jpg)
2. High Quality Components
With Standard ARP 2000 Bolts （Upgradable ARP L19)
.jpg)
3. Professional H-Beam Design
Improve stiffness, reduce stress risers and reduce weight
.jpg)
4. Precision Machining Manufacturing
Shot Peening for improved fatigue life. 100% CNC machined for superior tolerances,Precision rod cap alignment dowels
Application

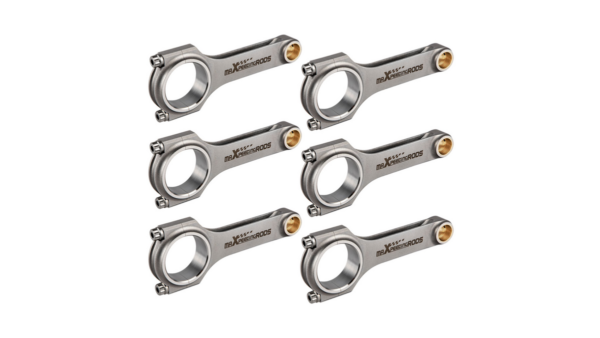

Compatible for BMW E34 M5 S38B38 3.8L 1991-1995
Specification
Performance Con Rods
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 220.000/230.000 PSI
Torque: 48ft ≈ 65 NM
Top speed: 9000rpm
Quantity: 6 Pieces a set
Bolts: Including Genuine 3/8″ ARP 2000 bolts (Note: Extra cost for upgrading to ARP L19 bolts)
Material: Forged 4340 aircraft chrome moly quality steel for racing
Weight Tolerance: Balanced to +/- 1 gram in set
Feature
Dimensions
Center to center length: 142.5mm
Big end diameter:52mm
Small end diameter: 22.02mm
Big end width: 24mm
Small end width: 24mm
Note
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
