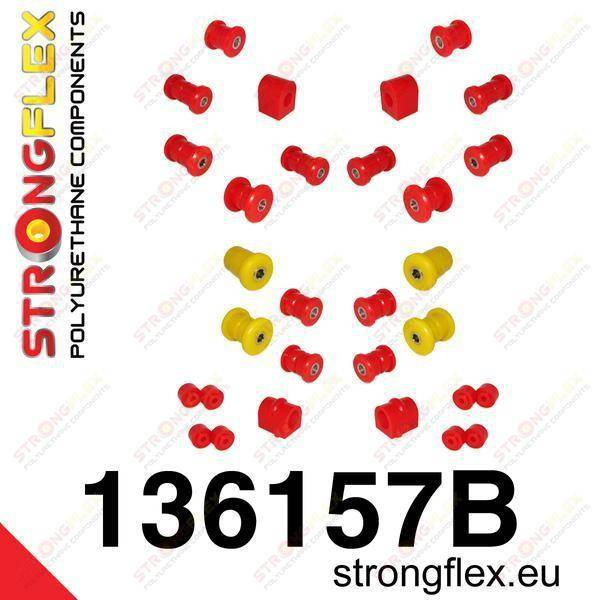

KIT ID: 136157B

Name: Full suspension polyurethane bush kit

Fits:

• Opel Manta B 75-84
• Opel Ascona B 75-81

Include:

• 131126B x 4 Front eye bolt mounting bush
• 131134B x 2 Front anti roll bar bush 16-24mm

NOTE: Measure your anti roll bar before placing order.

• 131601A x 2 Front lower wishbone front bush SPORT
• 131602A x 2 Front lower wishbone rear bush SPORT
• 131603B x 2 Front subframe rear mounting bush
• 131604B x 4 Front upper wishbone bush
• 131605B x 4 Rear centre prop mount & rear tie bar to axle bushes
• 131606B x 2 Rear tie bar to chassis bushes
• 131607B x 2 Rear anti roll bar bush

NOTE: Measure your anti roll bar before placing order.

• 131608B x 1 Rear panhard rod mount 12mm
• 131608B x 1 Rear panhard rod mount 17mm

NOTE!
To install the polyurethane bushing 131604B, you must burn the old rubber bush. Do not remove the outer metal sleeve, it must be reused for this bushing!

NOTE!
Check anti roll bar diameter before placing order.

Pcs / KIT: 26

Diagrams:

D1307-Opel-Manta-B-front-suspension-polyurethane-strongflex
D1308-Opel-Manta-B-rear-suspension-polyurethane-strongflex

Hardness: 80/90ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
