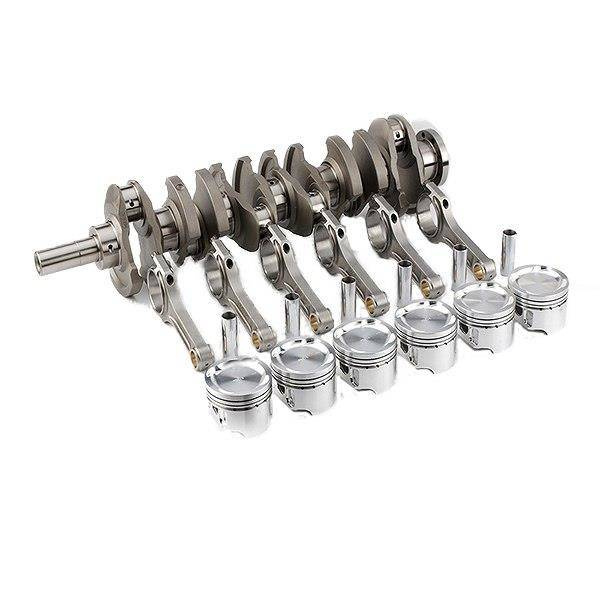

Set on 3.4 L capacity includes-shaft, Pistons, connecting rods.
| Bore Size | CR | The stroke | Rod Length | A PIN | The CH | Displacement | Rod Series | Piston Series | Crankshaft | Gasket Thickness |
| 86.50 mm | 9.0:1 | 94.00 mm | 142.00 mm | 22:00 mm | 29.97 mm | 3314cc | Heavy Duty | Diamond | Billet | 1.00 mm x 87.00 mm |
| 87.00 mm | 9.0:1 | 94.00 mm | 142.00 mm | 22:00 mm | 29.97 mm | 3353cc | Heavy Duty | Diamond | Billet | 1.00 mm x 87.00 mm |
Technical characteristics of the
Manufactured with precise 4340 steel
Full CNC machining
Multi-stage heat treatment
Heat treatment provides excellent wear resistance
Magna-flucing for error-free surface finishing
Shot peening to increase resistance to fatigue
Mikropolerowanie for longer bearing life
The crankshaft is balanced on Sunnen machines 1 g +/-0.1 and ready to start.
