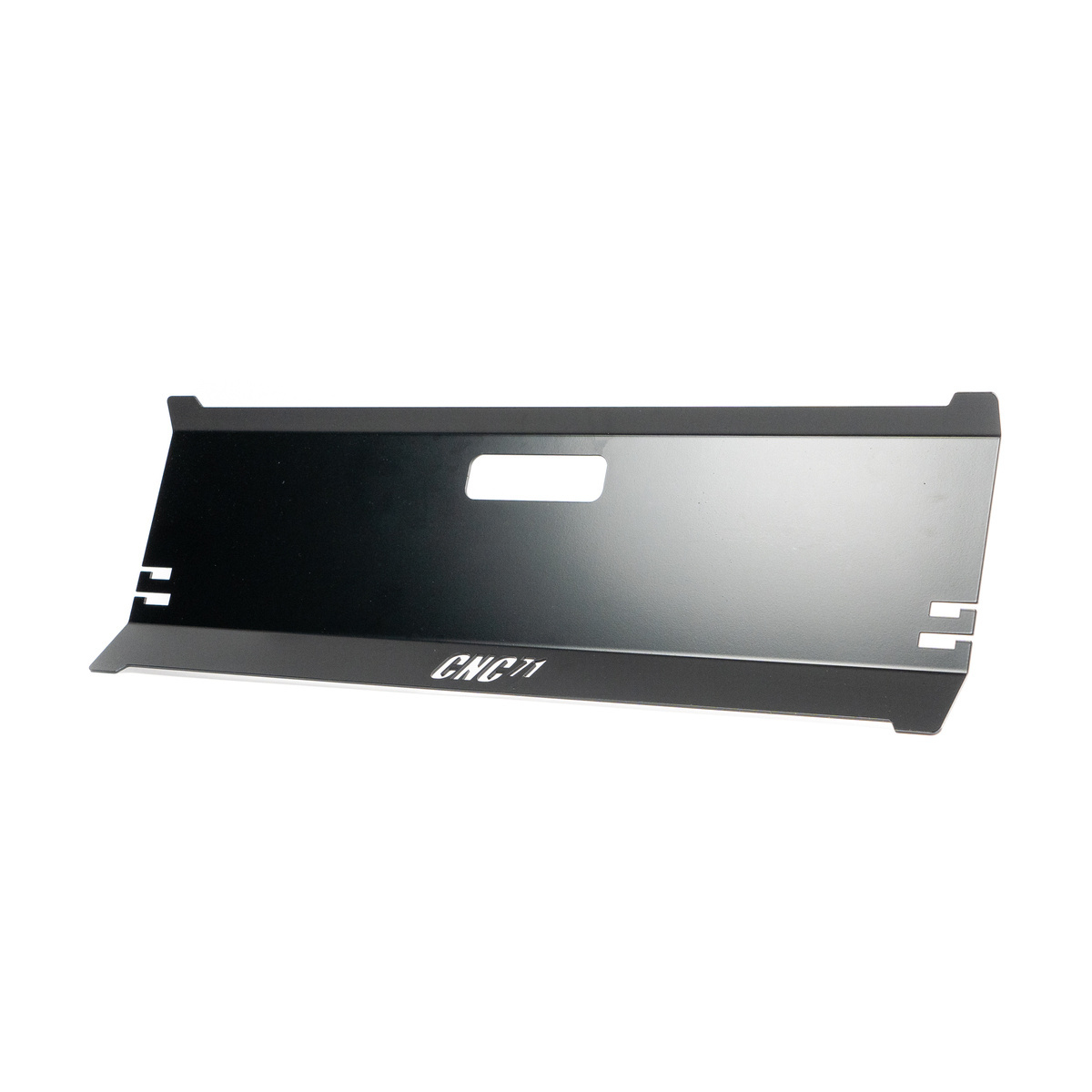

CNC71 Motorsport Toe Plates (Toe Plates) – a quick and easy way to measure and set wheel alignment in all conditions.

Made of steel, powder coated in black.

• Size: 600x180x20 [mm]
• Rigid construction for accurate measurement
• Measuring tapes 3 m long (optional to buy – not sold as a set with plates)

It is recommended to use our dedicated tool that will allow you to quickly calculate the values to be set on the measuring tapes in order to obtain the desired wheel toe value: https://tools.cnc71.eu/toe-calculator

NOTE: CNC71 Motorsport toe plates are used to set this parameter in a simplified way, which is very helpful in the case of going to the track, potentially replacing suspension components away from the workshop or having to set the car up the night before the event ;). However, this only allows for an approximate measurement with limited accuracy. For accurate suspension geometry adjustment, it is recommended to visit the appropriate workshop

In addition, in the case of rims whose arms protrude outside the vehicle beyond the plane defined by the rim rim and in the case of tires with a high profile (and low pressure), which deform significantly at the point of contact with the ground, the measurement may be distorted due to the inability to positioning of the plate in relation to the wheel. To determine the reference plane, it is necessary to apply the plate in at least 3 points.
