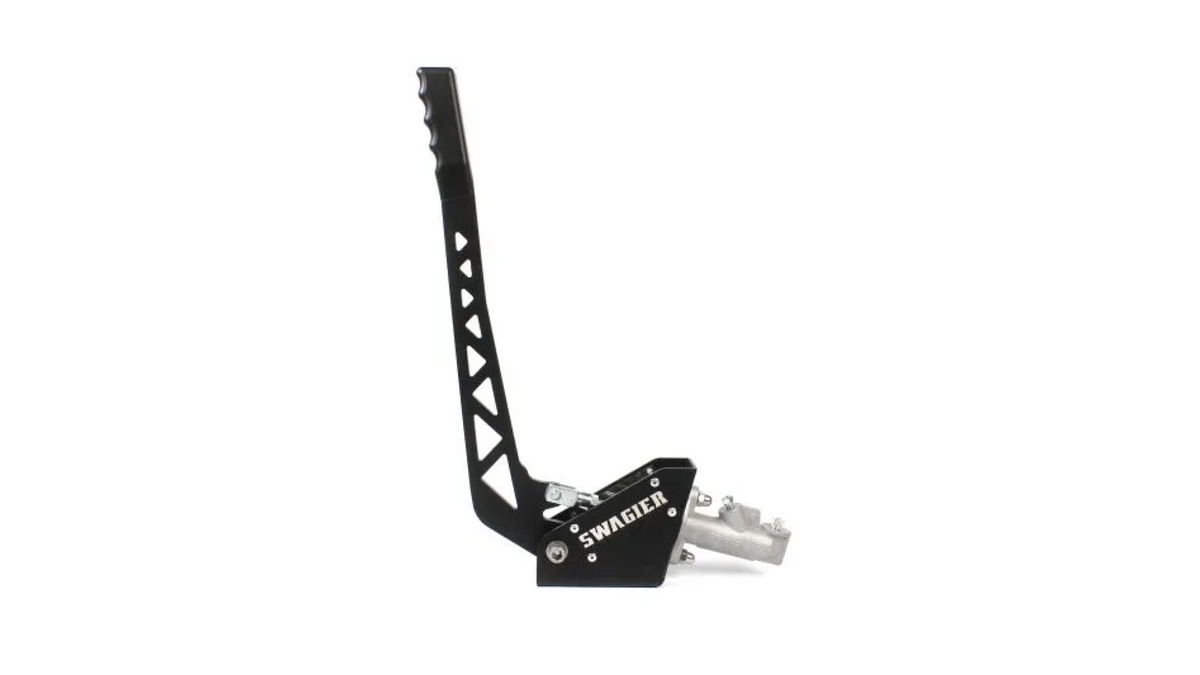

Gladiator V2 Hydraulic Handbrake – OBP Master Cylinder (without reservoir)

The Gladiator V2 hydraulic handbrake features an OBP master cylinder without a fluid reservoir, designed to lock the rear wheels by connecting to the braking system. Widely used in motorsport applications such as Drift, Rally, and KJS.

The mechanism is equipped with bearings, ensuring smooth and precise operation. Compared to the previous version, the V2 also features a new ergonomic handle, comfortable to use even without gloves.

It can be used to create an independent braking system or integrated into the existing brake system. With dedicated adapters available in our offer, installation and setup are simple.

The durable construction ensures high reliability, and the body includes integrated mounting holes for easy installation.

Technical data:

• OBP master cylinder

• piston diameter: 0.625″ (15.86 mm)

• inlet thread: 7/16″ UNF

• outlet thread: 3/8″ UNF

• integrated mounting holes.
