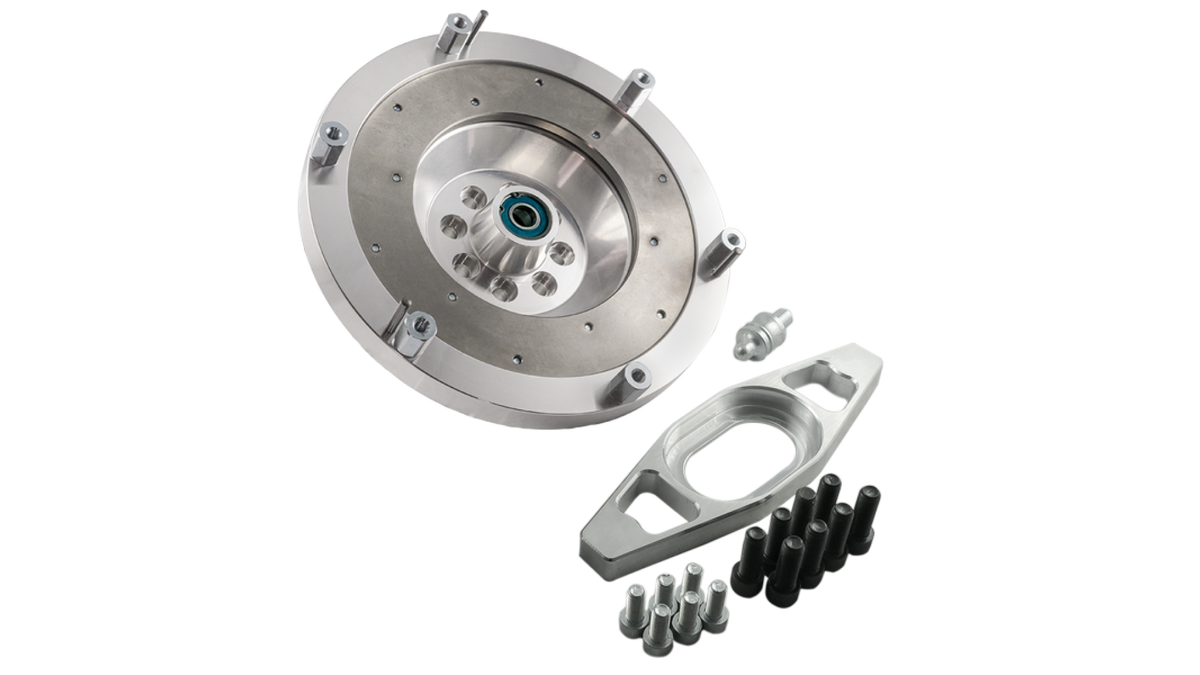

PMC Motorsport aluminium custom flywheel

Toyota JZ 1JZ 2JZ – BMW M57N2 GS6-53DZ HGD JGA E60 525D 530D 6-speed Diesel  – 215mm / 8.46″ (Twin Disc)

Custom aluminum flywheel designed to mate the Toyota JZ 1JZ 2JZ engine to the BMW M57N M57N2 ZF GS6-53DZ gearbox

• Designed in a CAD environment
• Only certified materials were used in the production process
• CNC machining
• Replaceable cast iron friction surface
• The flywheel is balanced prior to shipment



Engine list:	Toyota 1JZ (non VVT-i / VVT-i version) Toyota 1JZ-FSE Toyota 1JZ-GE Toyota 1JZ-GTE Toyota 2JZ (non VVT-i / VVT-i version) Toyota 2JZ-FSE Toyota 2JZ-GE Toyota 2JZ-GTE
Gearbox list:	BMW M57N M57N2 23.00 7522205 GS6-53DZ HGD (THGD) 6-speed 1067 010 003 ZF 1067 401 060 1067401060 / 1067 401 016 1067401016 BMW OEM 23 00 7 522 205 / 23 00 7 565 218 BMW E60 E60N E61N E61 525D 530D BMW M57N M57N2 23.00 7565218 GS6-53DZ JGA (TJGA) 6-speed 1067 010 013 ZF 1067 401 116 1067401116 BMW OEM 23 00 7 571 426



Manual:

• An adapter is required to connect the engine to the gearbox.
• Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
• Guide tube shortening required BMW OEM 23 11 7 501 71
• Replace the original custom pivot pin with the one from the kit.



 Made in EU
