Application
- Compatible for Renault Clio Williams RS F7R 4340 Forged Steel H-Beam Connecting Rod
- Compatible for Renault Clio Williams RS F7R F4R:
- Compatible for Renault Clio Williams 1993–1996
- Compatible for Renault Megane 1996–1999
- Compatible for Renault Sport Spider 1995–1999
- Compatible for Renault Laguna IV 1993–2000
- Compatible for Renault Mégane 2003–
- Compatible for Renault Scenic 2003–
- Compatible for Renault Espace1996–2014
- Compatible for Renault Clio Sport 172 182 ,2000–
Specification
- Type: Forged 4340 aircraft chrome moly quality steel for racing

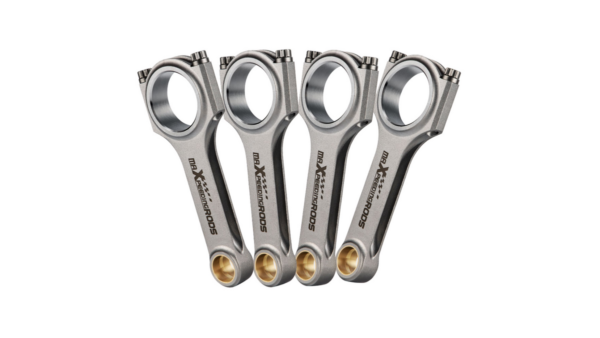

- H-beam Conrods Quantity: 4 Pieces as showing in picture
- Bolts: Including ARP 2000 3/8″ bolts (Note: Extra cost for upgrading to ARP L19 bolts)
- The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
- Advertised Horsepower Rating:200HP/piece
- Top acceleration: 9000rpm
Dimension
- Center to center length:144mm/5.669″
- Big end diameter:51.6mm/2.031″
- Small end diameter:21mm/0.827″
- Big end width:25mm/0.984″
- Small end width:25mm/0.984″
Feature
1. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
2. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
3. H-Beam design reduces weight without compromising strength；
4.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
5.High precision CNC machined,Precision rod cap alignment dowels；
6.Bores finished to +/- .01 mm；
7.Balanced to within +/- 1 g per rod；
8. Each rod is magnetic particle tested to ensure free of flaws；
9.Use X-rayed, sonic tested；
10.Custom Service.
Note
*Professional installation is highly recommended ；
