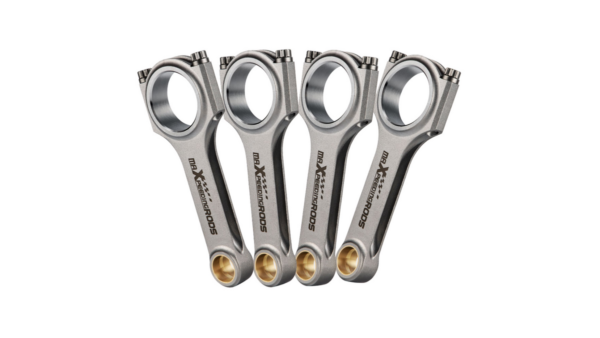

Forged connecting rods Nissan 200SX SR20 SR20DET S14 Maxpeedingrods

Application

• Compatible for Nissan S13 S14 Silver 180SX 200SX Pulsar SR20 SR20DE SR20DET
• Compatible for Infiniti G20 /Compatible for Nissan Primera /Compatible for Nissan Pulsar P10, 1990–1996 2.0L SR20DE I4 140 hp (104 kw)
• Compatible for Infiniti G20 /Compatible for Nissan Primera /Compatible for Nissan Primera Camino P11, 1998–2002 2.0L SR20DE I4 140 hp (104 kw) (1999)
• Compatible for Infiniti G20 /Compatible for Nissan Primera /Compatible for Nissan Primera Camino P11, 1998–2002 2.0L SR20DE I4 145 hp (108 kw) (2000 – 2002)

Specification

• Performance Con Rods
• Type: Forged 4340 aircraft chrome moly quality steel for racing
• H-beam Conrods Quantity: 4 Pieces a set
• Bolts: Including Genuine 3/8″ ARP 2000 bolts
• Note: Extra cost for upgrading to ARP L19 bolts
• Bolts Size: 3/8″
• Tolerance: Balanced to +/- 1 gram in set
• Piston Bolt Hole: +-4/1000mm
• Power: 600hp ~ 800hp set
• Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
• Top acceleration: 9000rpm

Dimensions

• Center to center length: 136.3mm
• Big end diameter: 51mm
• Small end diameter: 22mm
• Big end width: 22.8mm
• Small end width: 22.8mm

Feature

– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin

Note

– Professional installation is highly recommended (No Instruction Included)
