Application
- Mazda 626 (GF/GW) – 1997-2002
- Mazda MX-6 – 1997 (some versions)
- Mazda Capella (GF) – 1997-2002 (JDM)
- Mazda Premacy (CP) – 1999-2005
- Mazda MPV (LW) – 1999-2002 (FWD)
Specification

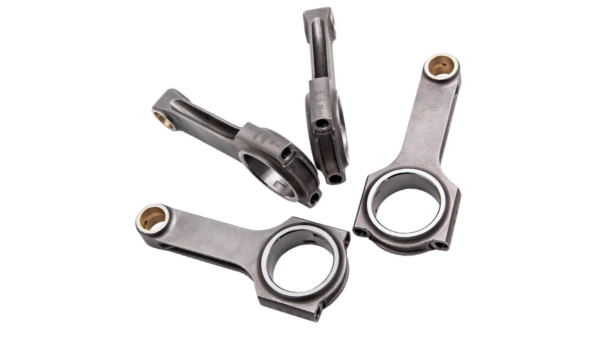

- Performance Con Rods
- Type: Forged 4340 aircraft chrome moly quality steel for racing
- H-beam Conrods Quantity: 4 Pieces a set
- Bolts:Including Genuine ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: ARP 2000 3/8″ bolts
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm
- Power: 600hp ~ 800PS per set
- Strength of the fastening (PSI): 220,000/230,000 PSI
- Torque: 48ft ≈ 65 NM
- Top acceleration: 7000-9000rpm
Dimensions
- Center to center length: 135mm
- Big end diameter: 51mm
- Small end diameter: 19mm
- Big end width: 21.79mm
- Small end width: 21.79mm
Feature
– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin
Note
– Professional installation is highly recommended (No Instruction Included)
