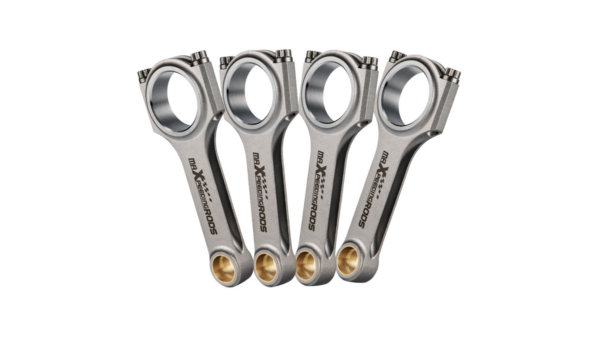

Forged connecting rods Honda Civic CRX Concerto 1.5 D15B2 Steel Maxpeedingrods

Application

• 1988 – 1991 compatible for Honda Civic GL DX LX D15B2 SOHC
• 1988 – 1991 compatible for Honda Civic Wagon Wagovan/DX D15B2 SOHC
• 1988 – 1991 compatible for Honda CRX D15B2 SOHC
• 1990 – 1995 compatible for Honda Concerto D15B2 SOHC (European Market)
• 1992 – 1995 compatible for Honda Civic LSi Hatch/Saloon (European Market)
• 1992 – 1995 compatible for Honda Civic DXi Hatch/Saloon (European Market)

Feature

• Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
• Designed and processed by CNC machine.
• All big and small ends are finished with SUNNEN honing machine
• Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
• 100% X-rayed, sonic tested and magnafluxed
• Multi-stage heat treated
• Shot peened to relieve stress
• Come with the bronzed bushing suitable for the floating piston pin

Dimensions

• Center to center length: 134.5mm
• Big end diameter: 45mm
• Small end diameter: 19mm
• Big end width:22.8mm
• Small end width:18mm

Specification

– Performance Con Rods
– Type: Forged 4340 aircraft chrome moly quality steel for racing
– H-beam Conrods Quantity: 4 Pieces as showing in picture
– Bolts: Including ARP 2000 bolts
– Note: Extra cost for upgrading to ARP L19 bolts
– Bolts Size: ARP 2000 5/16″ bolts
– Tolerance: Balanced to +/- 1 gram in set
– Piston Bolt Hole: +-4/1000mm
– Power: 600hp ~ 800PS per set
– Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
– Top acceleration: 7000rpm

Note

– Professional installation is highly recommended (No Instruction Included)
