Application
- Compatible for Honda Acura B18C1 B18C5 GSR Integra R 94-01
- Compatible for Honda Quint Integra compatible for Acura Integra Generation 3: Series DB8, DC2
- Compatible for Acura Integra (GSR/TypeR) 94-01 B18c1/B18c5
- Compatible for Honda B18c1/B18c5 (Dohc Engine) 1997-1998,1999 CDM, 2000-2001 compatible for Acura Integra USDM/CDM Type R
Specification

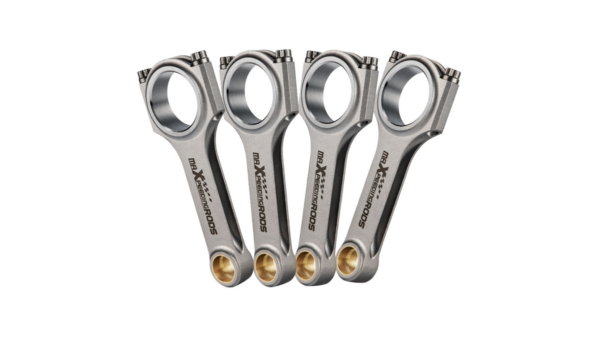

- Performance Con Rods
- Type: Forged 4340 aircraft chrome moly quality steel for racing
- H-beam Conrods Quantity: 4 Pieces a set
- Bolts: Including Genuine 3/8″ ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: 3/8″
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm
- Power: 600hp ~ 800PS per set
- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
- Top acceleration: 9000rpm
Dimensions
- Center to center length: 5.433″ (138mm)
- Big end diameter: 48mm
- Small end diameter: 21mm
- Big end width: 21.77mm
- Small end width: 23.45mm
Feature
– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin
Note
Professional installation is highly recommended (No Instruction Included)
