Application
- Compatible for Honda Accord F22 SOHC 2.2 90-97
Specification

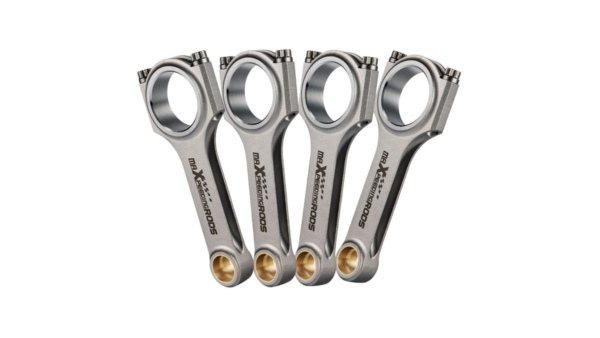

– Performance Con Rods
– Type: Forged 4340 aircraft chrome moly quality steel for racing
– H-beam Conrods Quantity: 4 Pieces a set
– Bolts: Including Genuine 3/8″ ARP 2000 bolts
– Note: Extra cost for upgrading to ARP L19 bolts
– Bolts Size: 3/8″
– Tolerance: Balanced to +/- 1 gram in set
– Piston Bolt Hole: +-4/1000mm
– Power: 600 ~ 800PS per set
– Strength of the fastening (PSI): 200,000/230,000 PSI Torque: 48ft ≈ 65 NM
– Top acceleration: 9000rpm
Dimensions
- Center to center length: 142mm
- Big end diameter: 51mm
- Small end diameter: 22mm
- Big end width: 23.75mm
- Small end width: 23.75mm
Feature
– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin
Note
– Professional installation is highly recommended (No Instruction Included)
