Application
- Compatible for BMW M50 M52 B25 TU 24V M52TUB25
- Compatible for BMW E46 323i, 323Ci M52TUB25 1998 – 2000
- Compatible for BMW E39 523i M52TUB25 1998 – 2000
- Compatible for BMW E36/7 Z3 2.3i M52TUB25 1998 – 2000
Specification
– Performance Con Rods
– Type: Forged 4340 aircraft chrome moly quality steel for racing

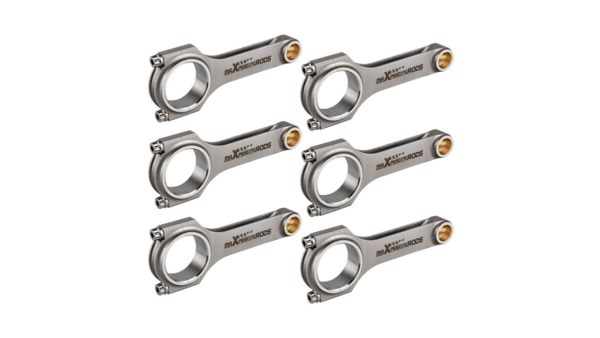

– H-beam Conrods Quantity: 6 Pieces as showing in picture
– Bolts: Including ARP 2000 bolts
– Note: Extra cost for upgrading to ARP L19 bolts
– Bolts Size: ARP 2000 3/8″ bolts
– Tolerance: Balanced to +/- 1 gram in set
– Piston Bolt Hole: +-4/1000mm
– Power: 600hp ~ 800hp per set
– Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
– Top acceleration: 9000rpm
Dimensions
- Center to center length: 140mm
- Big end diameter: 48mm
- Small end diameter: 22mm
- Big end width: 21.9mm
- Small end width: 21.9mm
Feature
– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin
Note
– Professional installation is highly recommended (No Instruction Included)
