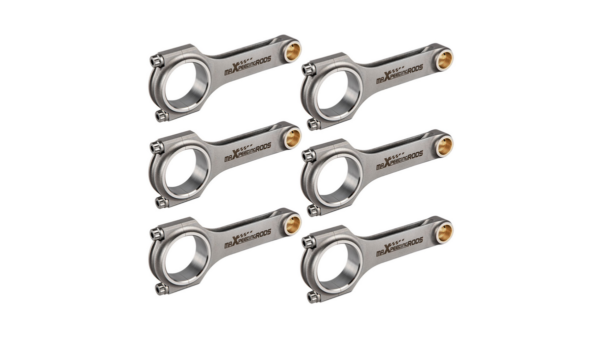

Forged connecting rods Audi VW 3.0T 153 mm Maxpeedingrods

Application

• Compatible for Audi 3.0L TFSI Supercharged DOHC V-6
• Compatible for Volkswagen 3.0 DOHC V6 TDI Engine

Details fitment Engine 3.0 DOHC V6:

• Compatible for Audi B7 A4, B8 A4, Q7, C6 A6, D3 A8
• Compatible for Volkswagen Phaeton, Touareg
• Compatible for Porsche Cayenne

Feature

– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin

Dimensions

• Center to center length: 153 mm
• Big end diameter: 58.85mm
• Small end diameter: 22mm (taper)
• Big end width: 20.10mm
• Small end width: 20.10mm

Specification

• Performance Con Rods
• Type: Forged 4340 aircraft chrome moly quality steel for racing
• H-beam Conrods Quantity: 6 Pieces a set
• Bolts: Including Genuine ARP 2000 5/16″ bolts
• Note: Extra cost for upgrading to ARP L19 bolts
• Bolts Size: 5/16″
• Tolerance: Balanced to +/- 1 gram in set
• Piston Bolt Hole: +-4/1000mm
• Power: 600hp ~ 800PS per set
• Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
• Top acceleration: 7000rpm

Note

• Professional installation is highly recommended (No Instruction Included)
