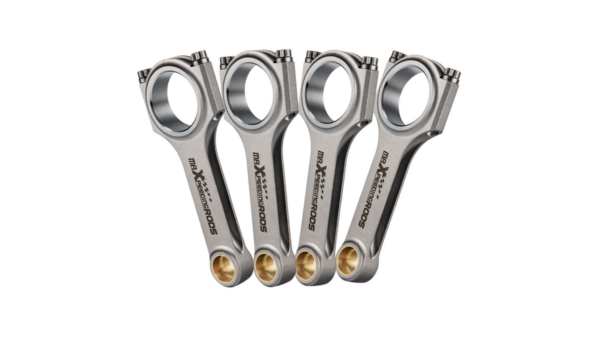

Forged connecting rods Audi S3/4 A4/6 TT VW Golf GTI 1.8T 2.0L Passat Jetta Maxpeedingrods

Application

Note: Please double confirm the dimensions before purchasing
No tappered Small End

• Compatible For Audi / For VW Golf Gti 1.8T 2.0L 16V 20V 4 Cyl.
• Compatible For Audi S3 A3 A4 A6 TT & For VW 1.8T Engines
• Compatible For Audi A3 1.8 20vT AGU/ARZ/ARX/AUM/AQA 1996–2003
• Compatible For Audi S3 1.8 20vT APY AMK 1999–2001
• Compatible For Audi S3 1.8 20vT BAM AEB 2001–2003
• Compatible For Seat Ibiza 1.8T (AYP AQX)
• Compatible For Audi A4/A6 1.8 20vT (AEB ANB APU ARK)
• Compatible For Audi TT Quattro 1.8T BAM AEB
• Compatible For VW Golf 1.8T (GTi AGU ARZ)
• Compatible For VW Jetta, For VW New Beetle 2001–present
• Compatible For VW Passat 1.8T (AEB ANB ATW)
• Compatible For VW Beetle 1.8T (AVC)
• Compatible For VW Bora 1.8T (AGU)

Specification

• Type: Forged 4340 aircraft chrome moly quality steel for racing
• H-beam Conrods Quantity: 4 Pieces a set
• Bolts: Including Genuine ARP 2000 bolts
• Note: Extra cost for upgrading to ARP L19 bolts
• Bolts Size: ARP 2000 3/8″ bolts
• Tolerance: Balanced to +/- 1 gram in set
• Piston Bolt Hole: +-4/1000mm
• Advertised Horsepower Rating：200HP/piece
• Strength of the fastening (PSI): 220,000/220,000 PSI Torque: 48ft ≈ 65 NM
• The big end bores are honed to a +/-.01mm tolerance
• The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
• Top acceleration: 9000rpm

Dimensions

• Center to center length: 144mm/≈5.66929 in.
• Big end diameter: 50.6mm/≈1.99212 in.
• Small end diameter: 20mm/≈0.7874 in.
• Big end width: 24.9mm/≈0.98032 in.
• Small end width: 24.9mm/≈0.98032 in.

Feature

– Performance Con Rods
– Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Genuine ARP 2000 bolts ,Optional ARP L9 fasteners available as an upgrade
– H-Beam design reduces weight without compromising strength
– Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers
– 100% CNC machined,Precision rod cap alignment dowels
– Bores finished to +/- .01 mm
– Balanced to within +/- 1 g per rod
– Each rod is magnetic particle tested to ensure free of flaws
– 100% X-rayed, sonic tested

Note

Professional installation is highly recommended (No Instruction Included)
