Forged conncting rods Volvo 850 C70 V70 T-5 2.3L 2.5L B5234T 139.5mm Maxpeedingrods

Application

Compatible for Volvo 850 C70 V70 S60 S70 2.3 T5 R AWD B5234T
Fitment Details:
Compatible for Volvo 850 LS 1991-1997 Saloon 2.3 T5, 2.3 T5-R, 2.3 Turbo R
Compatible for Volvo 850 LW 1992-1997 Estate 2.3 T5, 2.3 T5-R, 2.3 Turbo R
Compatible for Volvo C70 I MK I 1997-2005 Coupe 2.3 T-5, 2.3 T5
Compatible for Volvo C70 I MK I 1997-2005 Convertible 2.3 T-5, 2.3 T5
Compatible for Volvo S60 I MK I 2000-2010 Saloon 2.3 T5, T5
Compatible for Volvo S70 LS 1996-2000 Saloon 2.3, 2.3 T5 AWD
Compatible for Volvo V70 P80_ 1995-2000 Estate 2.3 Turbo, 2.3 T-5, 2.3 AWD, 2.3 T-5 AWD
Compatible for Volvo V70 MK II 1999-2008 Estate 2.3, 2.3 T5
NOTE：Big end has no bearing notches.

Specification

Type: Forged 4340 aircraft chrome moly quality steel for racing

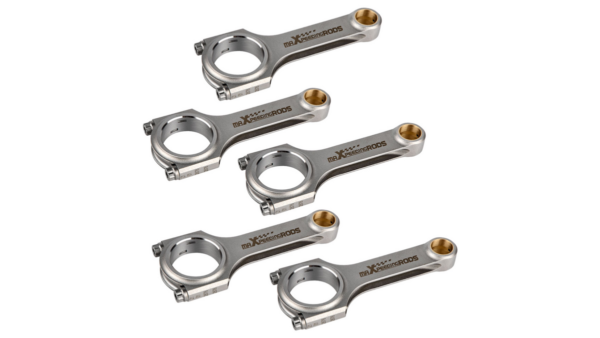

H-beam Conrods Quantity: 5 Pieces as showing in picture
Bolts: Including ARP 2000 bolts 3/8″ bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 139.5mm
Big end diameter: 53mm (the big end has no bearing tag)
Small end diameter: 23mm
Big end width: 25.7mm
Small end width: 25.7mm

Feature

– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin

Note

– Please Carefully check the Size of the Rods in Specific and Description, this is the best way to check the fitment
– The big end has no bearing tag
– Professional installation is highly recommended (No Instruction Included)
– Custom Service:If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
