Application
Compatible For Toyota 20R/22R/22RE/22RET 2.2/2.4L
Compatible For Toyota Hilux 1975–1980
Compatible For Toyota Celica (U.S. Version),1975–1980
Compatible For Toyota Corona (U.S. Version),1975–1980
Compatible For Toyota Hilux, 101 kW (135 hp; 137 PS),1985–1988
Compatible For Toyota 4Runner,1984–1995
Pin Type: Floating Pin Piston
Specification
*Type: Forged 4340 aircraft chrome moly quality steel for racing

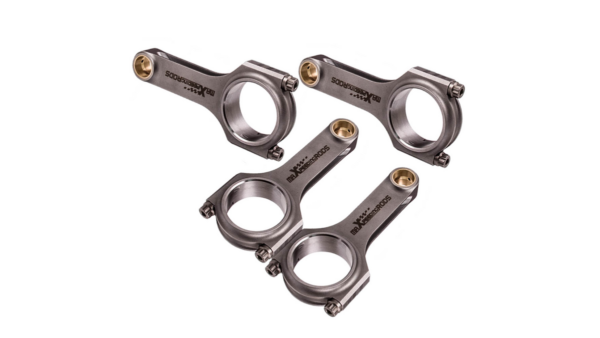

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8″ bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM
Dimension
Center to center length:147.8mm/5.819″
Big end diameter:56mm/2.205″
Small end diameter:22mm/0.866″
Big end width:27.5mm/1.083″
Small end width:27.5mm/1.083″
Feature
1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.
Note
*Professional installation is highly recommended ；
*Custom Service:If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Warranty: one year warranty for any manufacturing defect
Warranty: one year warranty for any manufacturing defect
