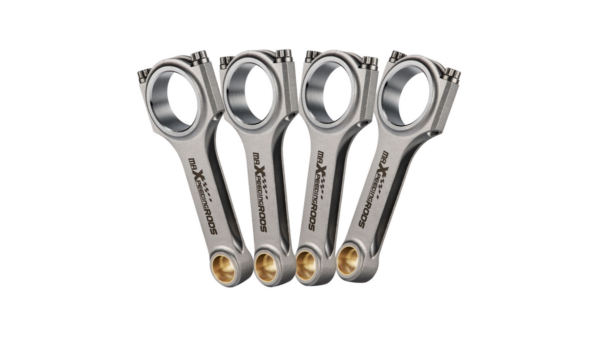

Forged conncting rods Suzuki GSX-R1100W 93-98 GSF1200 Bandit Maxpeedingrods

Application

Compatible for Suzuki GSX-R1100W 93-98 GSF1200 Bandit

Dimensions

Center to center length: 117 mm
Big end diameter: 41 mm
Small end diameter: 20.02mm
Big end width: 21mm
Small end width: 21mm

Specification

Quantity: 4 Pieces as showing in picture
Bolts: Including Genuine ARP 2000 bolts
Bolts size: ARP 2000 5/16″ bolts
Lubricants: Not available
Tolerance: Balanced to +/- 1 gram in set
Note: Extra cost for upgrading to ARP L19 bolts
Warranty: one year warranty for any manufacture defect

Feature

– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service: If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE
