Forged conncting rods Nissan Skyline GTS R31 Patrol RB30 RB30DET 152.5mm Maxpeedingrods

Application

Compatible for Nissan Skyline GTS R31 compatible for Patrol RB30 RB30DET

Specification

– Performance Con Rods
– Type: Forged 4340 aircraft chrome moly quality steel for racing

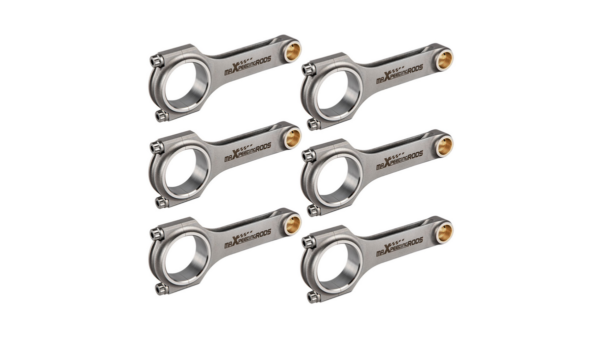

– H-beam Conrods Quantity: 6 Pieces as showing in picture
– Bolts: Including ARP 2000 bolts
– Note: Extra cost for upgrading to ARP L19 bolts
– Bolts Size: ARP 2000 3/8″ bolts
– Tolerance: Balanced to +/- 1 gram in set
– Piston Bolt Hole: +-4/1000mm
– Power: 600~800HP
– Strength of the fastening (PSI): 200,000 – 230,000 psi Torque: 48ft ≈ 65 NM
– Top acceleration: 7000-9000 rpm
– Warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 152.5mm
Big end diameter: 53mm
Small end diameter: 21mm
Big end width: 21.8mm
Small end width: 21.8mm

Feature

– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin

Note

– Professional installation is highly recommended (No Instruction Included)
– Custom Service:If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
