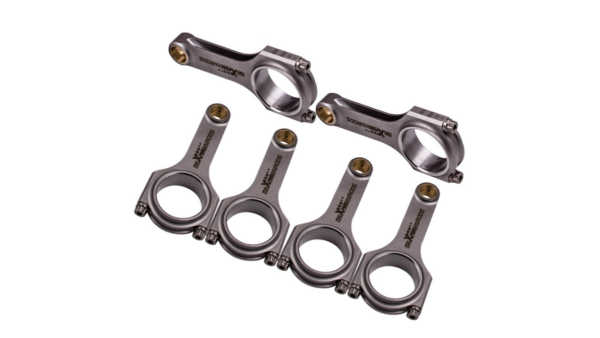

Forged conncting rods Nissan Patrol Safari Civilian 4.2L TD42 Turbo Diesel Maxpeedingrods

Application

Compatible for Nissan Patrol Safari 4.2L TD42 Early model with 28mm pin

Feature

– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing

– Designed and processed by CNC machine.

– All big and small ends are finished with SUNNEN honing machine

– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

– 100% X-rayed, sonic tested and magnafluxed

– Multi-stage heat treated

– Shot peened to relieve stress

– Come with the bronzed bushing suitable for the floating piston pin

Dimensions

Center to center length: 157mm

Big end diameter: 59.97mm

Small end diameter: 30mm

Big end width: XX

Small end width: XX

Specification

Performance Con Rods

Type: Forged 4340 aircraft chrome moly quality steel for racing

H-beam Conrods Quantity: 6 Pieces a set

Bolts: Including Genuine ARP 8740 bolts

Note: Extra cost for upgrading to ARP L19 bolts

Bolts Size: 7/16″

Tolerance: Balanced to +/- 1 gram in set

Piston Bolt Hole: +-4/1000mm

Power: 600hp ~ 800PS per set

Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM

Top acceleration: 9000rpm

warranty: one year warranty for any manufacture defect

Note

Professional installation is highly recommended (No Instruction Included)

Custom Service: If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

Learn more about CUSTOM SERVICE
