Application
Compatible for Mazda SkyActiv-G 2.0 (PE-VPS) 2.0L engine
compatible for Mazda Axela/Mazda3 MK3 (BM, BN) ,MK4 2012–present 2.0L
compatible for Mazda Atenza/Mazda6 MK3 (GJ1; 2012–2016) (GL; 05/2016-) 2013–present 2.0L
compatible for Mazda CX-5 MK1(KE) MK2 2012–present 2.0 L
compatible for Mazda Biante 2015–2018 2.0 L
compatible for Mazda Premacy/Mazda5 2014-2015 2.0 L
compatible for Mazda CX-3 2015–present 2.0 L
compatible for Mazda Roadster/MX-5 Miata 2016–present 2.0 L
compatible for Mazda CX-4 2016-present 2.0 L
Specification

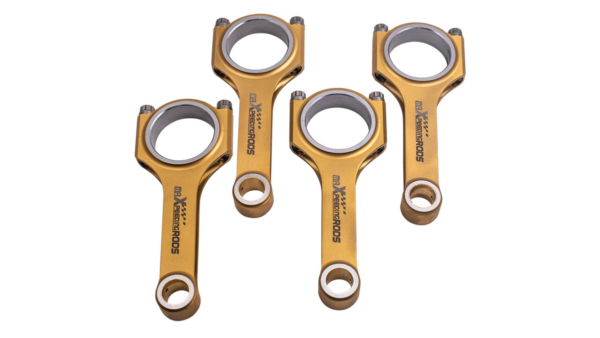

Performance Con Rods
Quantity: 4 Pieces a set
Bolts: Including Genuine 3/8″ ARP 2000 bolts (Note: Extra cost for upgrading to ARP L19 bolts)
Material: Titanizing Forged 4340 en42 aircraft chrome moly quality steel for racing
Weight Tolerance: Balanced to +/- 1 gram in set
Warranty: one year warranty for any manufacturing defect
Dimensions
Center to center length: 154.8mm
Big end diameter: 53mm
Small end diameter: 21mm
Big end width: xx
Small end width: xx
Feature
– Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
– Designed and processed by CNC machine.
– All big and small ends are finished with SUNNEN honing machine
– Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
– 100% X-rayed, sonic tested and magnafluxed
– Multi-stage heat treated
– Shot peened to relieve stress
– Come with the bronzed bushing suitable for the floating piston pin
Note
Professional installation is highly recommended (No Instruction Included)
Custom Service: If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE
