Application
Compatible for Cadillac ATS LTG 2.0T
Compatible for 13-18 compatible for Cadillac ATS 2.0L Ecotec LTG
Pin Type: Floating Pin Piston
Specification
*Type: Forged 4340 aircraft chrome moly quality steel for racing

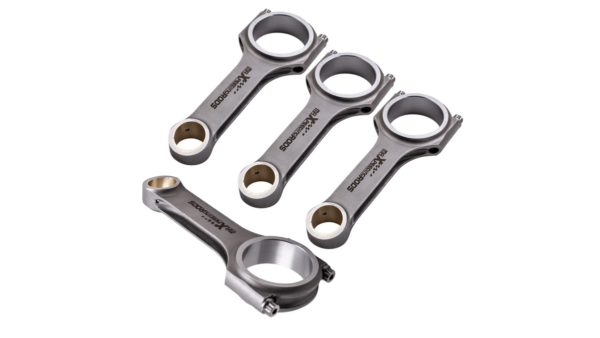

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8″ bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM
Dimension
Center to center length: 152.5mm/6.004”
Big end diameter: 52.125mm/2.052”
Small end diameter: 24mm/0.945” ( taper small end )
Big end width: 26.467mm/1.042”
Small end width: 26.467mm/1.042”
Feature
1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.
Note
*Professional installation is highly recommended ；
*Custom Service:If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
