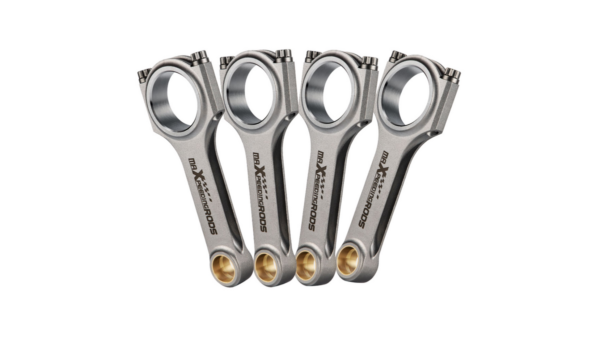

Forged conncting rods BMW 2002Ti/Tii Turbo M10 Maxpeedingrods

Application

Compatible for BMW 2002 Ti / ii Turbo M10 Engine 135mm
Compatible for BMW 1962-1988 M10 Engine 135mm
Compatible for BMW 2 Series 2002 Tii M10

Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts:Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8″ bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Horsepower Rating:200HP/piece
Top acceleration: 9000rpm
warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 135mm
Big end diameter: 52mm
Small end diameter: 22mm
Big end width: 23.876mm
Small end width: 23.88mm

Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
-Designed and processed by CNC machine.
-All big and small ends are finished with SUNNEN honing machine
-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
-100% X-rayed, sonic tested and magnafluxed
-Multi-stage heat treated
-Shot peened to relieve stress
-Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
