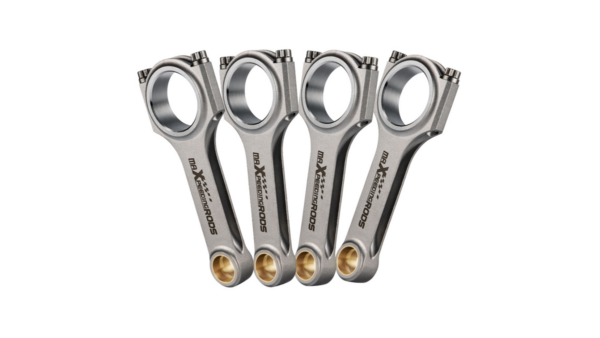

Forged conncting rods Alfa Romeo Giulia 1600 Sprint GTA Maxpeedingrods

Application

Compatible for Alfa Romeo Giulia Sprint 1600 GTA 1.6L

Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
-Designed and processed by CNC machine.
-All big and small ends are finished with SUNNEN honing machine
-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
100% X-rayed, sonic tested and magnafluxed
-Multi-stage heat treated
-Shot peened to relieve stress
-Come with the bronzed bushing suitable for the floating piston pin

Dimensions

Center to center length: 148mm
Big end diameter: 53.7mm
Small end diameter: 22mm
Big end width: 26.7mm
Small end width: 23.7mm

Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts: Including Genuine ARP 2000 5/16″ bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 5/16″ bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600~800HP per set
Strength of the fastening (PSI): 200,000 – 230,000 psi Torque: 48ft ≈ 65 NM
Top acceleration: 7000-9000 rpm
warranty: one year warranty for any manufacturing defect

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE
