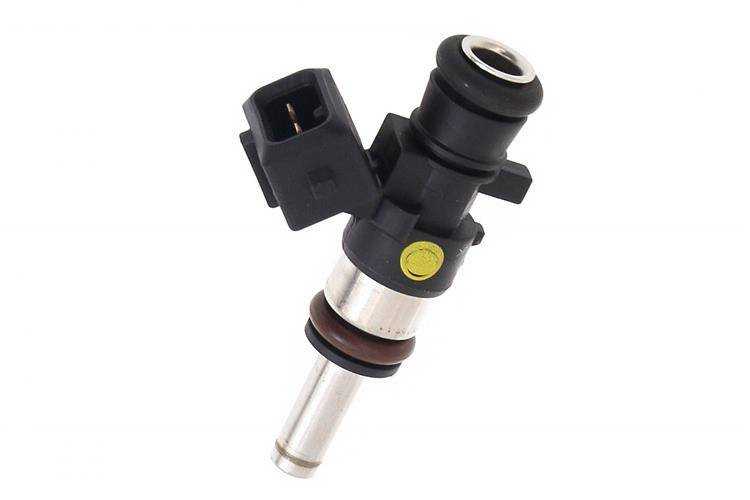

EV14 Injector 1400cc (EV14-1400) – Short, Long Spray Tip

This high-performance, modified next-generation Bosch EV14 injector features a “ball to seat” type tip. Designed specifically for demanding tuning projects, it delivers excellent fuel atomization and precise metering. All injectors are supplied in flow-matched sets to guarantee perfectly balanced performance across all cylinders.

Flow Rate Performance:

• 3 bar: approx. 1400 cc/min

• 4 bar: approx. 1610 cc/min

• 5 bar: approx. 1820 cc/min

• 6 bar: approx. 2000 cc/min

Key Features & Technical Specifications:

• Type / Body Style: Short type – O-ring to O-ring distance is 34 mm.

• Spray Tip: Long spray end with a conical spray pattern.

• Resistance: High resistance (12 Ohm).

• O-rings: 14 mm, fully compatible with ethanol and gasoline.

• Connector Type: USCAR.

• Fuel Compatibility: 100% compatible with standard gasoline as well as E85 / RE85 (ethanol).

• Flow-Matched Quality: Each injector is thoroughly tested and matched into precise sets by us prior to delivery to ensure optimal and balanced fuel distribution.
