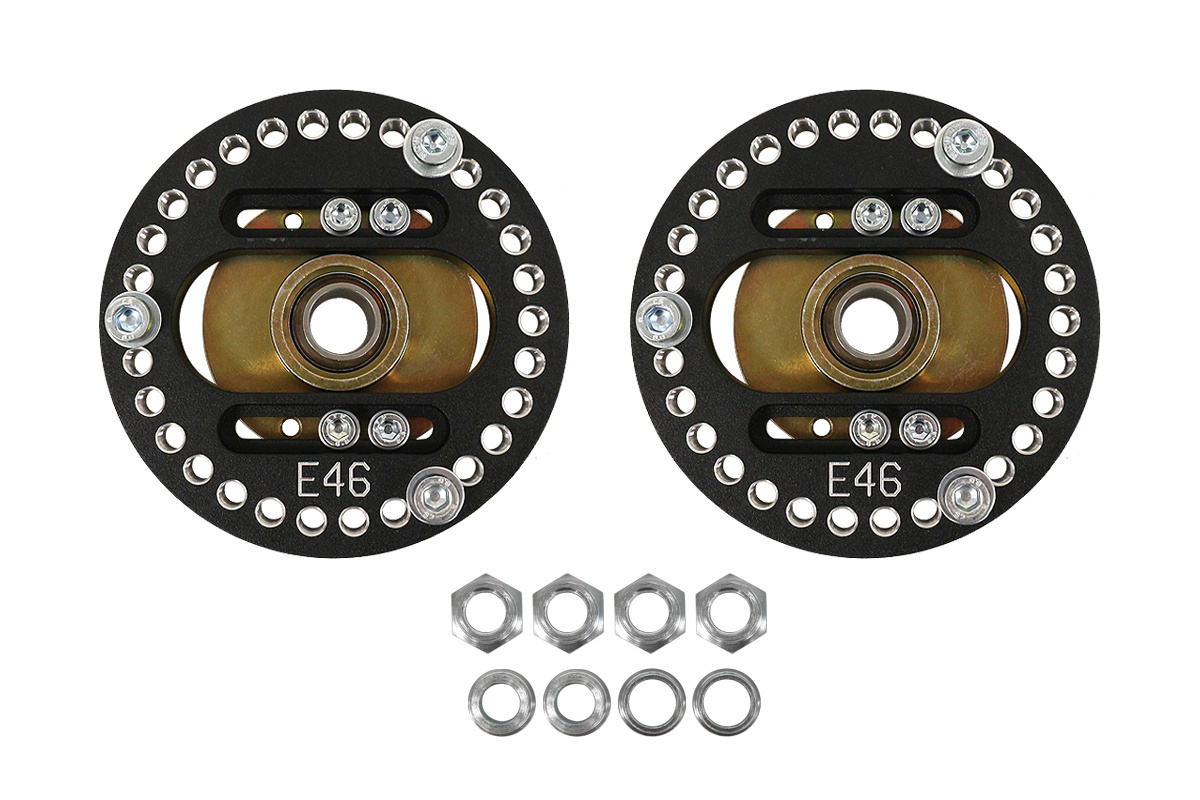

The set includes a set of two CAMBER PLATES 3D for the BMW E46 E39 E31. This set has been specially designed for installation in the car to adjust the angle of inclination of the front wheels and the KWSZ adjustment. Thanks to this option, turning in the car can be set to be as efficient as possible and the steering wheel bounces smoothly. This is useful both in stance cars and in various areas of motorsport such as DRIFT, KJS, etc. Changing the angle of the front wheel allows you to obtain the most optimal driving characteristics of the vehicle for the owner.

Technical description :

The CAMBER plate:

– made of 15 mm thick aluminum, grade: PA6

– milled on CNC machines

– black anodized

Bearing housing:

– turned on CNC machines

– made of high quality structural carbon steel

– additionally galvanized

Bearing:

– maintenance-free fluro with reduced bearing play

– used under heavy loads, made of stainless steel

M8 mounting screws with fine thread, galvanized.

Collar nuts and additional schnorr washers to prevent unscrewing

NOTE: THREAD ADHESIVE MUST BE USED TO TIGHTEN THE BOLTS TO THE CAMBER!
