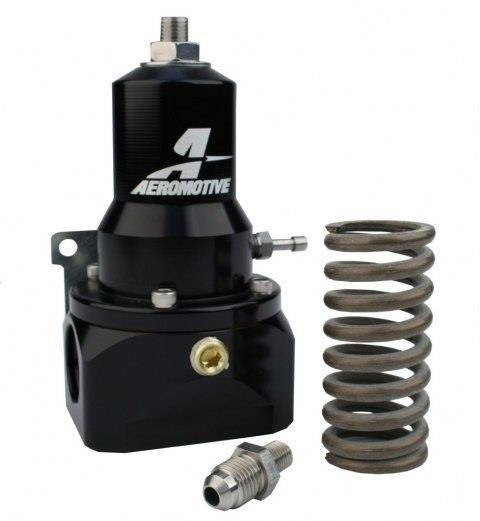

Extreme Flow EFI Regulator Designed for use with Belt or Hex Drive Fuel Pumps.
Compact, 2-Port Body with dual ORB-10 inlet/outlet ports and one ORB-10 return port. 0.500 High Flow Valve/Seat, able to handle 7-26 GPM Dual Springs expand operating pressure range while maintaining a low profile and reduced weight.
Standard spring (installed) supports 30-75 PSI base fuel pressure. High Pressure spring (included) supports 75-120 PSI base fuel pressure.
Supports vacuum and boost reference on a 1:1 ratio with PSI
We also have connecting nipples:
| Symbol | Name |
| AM-15606 | Adapter ORB-06 AN6 |
| AM-15649 | Adapter ORB-06 AN8 |
| AM-15641 | Adapter ORB-08 AN10 |
| AM-15605 | Adapter ORB-08 AN6 |
| AM-15607 | Adapter ORB-08 AN8 |
| AM-15608 | Adapter ORB-10 AN10 |
| AM-15609 | Adapter ORB-10 AN6 |
