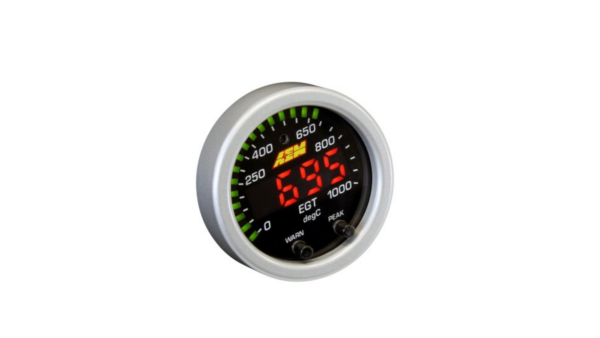

AEM 30-0305 – X-Series Digital EGT Gauge 0–1800 °F / 0–1000 °C

Product Overview

The AEM 30-0305 is a digital exhaust-gas-temperature (EGT) gauge from the X-Series line, combining an oversized LED display, an ultra-slim body, and intuitive programming. Accurate EGT data in the 0–1800 °F (0–1000 °C) range is critical when tuning boosted or high-performance engines—this gauge delivers those readings while fitting almost any dashboard panel.

Key Features

Large central LED display – 87% larger than previous AEM gauges for excellent readability in bright sunlight.
Ultra-slim housing – overall depth just 0.825 in (21 mm); cup depth only 0.200 in (5 mm) for easy installation in tight panels.
Programmable alerts – two front buttons set warning threshold, Peak/Recall, and °F/°C units.
AEMnet (CAN bus) – daisy-chain multiple gauges and stream data to ECUs, loggers, or an AEM Infinity system; plus 0–5 V analog output.
Complete kit – includes RTD EGT sensor, harness, weld-in bung, mounting bracket, and reversible °F/°C faceplate.
