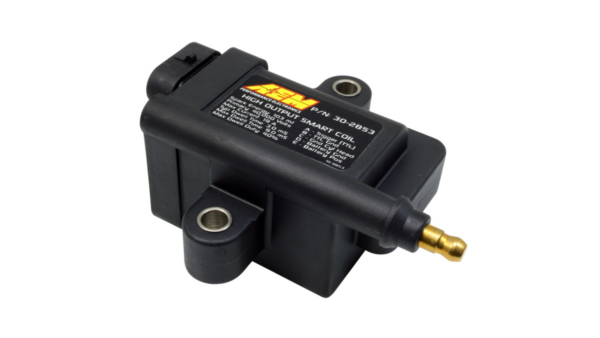

AEM 30-2853 – High-Output IGBT Smart Ignition Coil
The AEM 30-2853 is a universal “smart” inductive coil with an integrated IGBT driver. It delivers CDI-level spark energy while retaining the long spark duration characteristic of inductive ignition—ideal for high-boost, high-compression and nitrous-fed engines.
Key Features
-
Spark energy up to 103 mJ ensures reliable combustion in extreme conditions.
-
Minimum 40 kV output voltage—no external CDI module required.
-
Long 2.9 ms arc duration for complete burn even on rich mixtures.
-
Built-in IGBT driver accepts a simple 0–5 V trigger from most aftermarket ECUs.
-
Sealed, vibration-resistant housing suitable for engine-bay mounting.
-
Compact and cost-effective alternative to popular LS-style coils.
